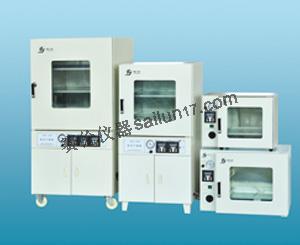

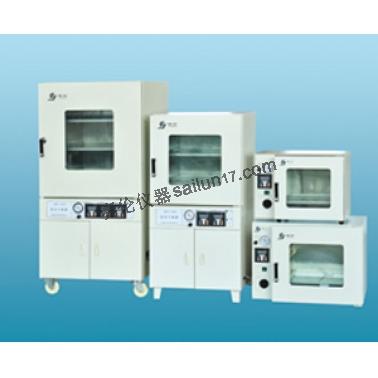

DZF型 真空干燥箱

一、适用范围：
适用于工矿企业、医学院校、科研单位在真空条件下对物品进行干燥热处理等。
二、产品特点：
1、长方体工作室采用优质钢板或不锈钢板。钢化、双层玻璃门观察工作室内物体一目了然。
2、箱门闭合松紧能调节，整体成型的硅橡胶门封圈，确保箱内高真空度。
3、微电脑智能控温仪，具有设定，测定温度双数字显示和PID自整定功能，控温准确。
4、加热功率比例可任意调节。
一、Suitable Scope
It is applicable to such tests as drying heat treatment.ect.of artides under vacuum conditions in industrial and mining enterprises as well as in nedical colleges and scientific research institues.
二、Characteristies of product
1、 The working chamber is ，made of high quality sheet or corrosion-resistant stainless steel.Toughened hulletproof double glass door,to observe clearly the object in the working chamber.
2、 The air-tightness of the chamber door is adjustable,with a wholly shaped silicon rubber door sealing loop;so as to guarantee in-chamber high vacuum.
3、 Intelligent temperature controller is based microprocessor with PID parameters controlling function.Digital display of set and actual temperatures.High temperature controlling accuracy and reliability.
4、Be sure to the temperature is not excess.and the heat up power can be adjusted.

■采用平板式加热器，均匀分布在工作室外壁。 ※Adopting the platetype heater to evenly distribute to heat over the outer wall of the chamber.

■加热器直接装入工作室底部升温快。 ※The heater is installed directly at the bottom of the working chamber for quick temperature use.

三、技术参数 (Technical date):

型号Model	DZF-6020	DZF-6021	DZF-6030	DZF-6050	DZF-6090	DZF-6210
电源电压Mains voltage	220V ,50Hz
控温范围Temperature control range	RT+10℃～200℃	RT+10℃～150℃	RT+10℃～200℃	RT+10℃～250℃	RT+10℃～250℃
消耗功率Consumption Power	300W		400W	1400W	1200W	2160W
温度波动Temperature fluctuation	±1℃
真空度Vacuum degree	<133pa
工作室尺寸Dimensions of the working chamber	300×300×275mm		320×320 ×300mm	415×370 ×345mm	450×450 ×450mm	560×590 ×640mm
工作室材料 Material of working chamber	1Grl8Ni9Ti	08F	1Grl8Ni9Ti	1Grl8Ni9Ti	1Grl8Ni9Ti

如何购买：立即联系我们

售后服务：保修一年,终身维护。
